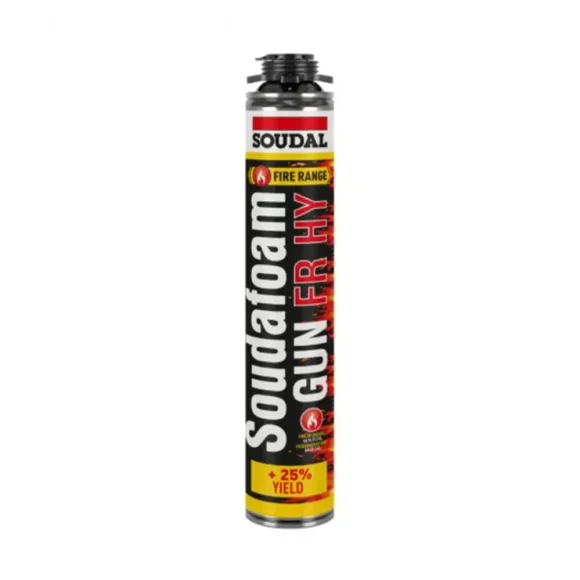

Soudafoam Gun FR HY

APPLICATIONS

Installation of fireproof doors and windows
Sealing of fire-retardant joints in walls and ceiling
As part of the ‘Soudal Fire Range’ assortment for penetration seals and joints
Sealing of all openings in roof constructions
Apply of an acoustic baffle
All foam applications in static joints

Availability: In Stock

SKU:medical kit-1-1-1-1-1-3-2-2-3-3-2-2-2-1-2-2Categories: Polyurethanes, soudalTags: help Medical

Description
Reviews (0)

Description:

Soudafoam FR HY Gun is a single component, self-expanding polyurethane foam designed for use with a gun applicator due to its threaded canister. It features fire-retardant properties compliant with European standard EN 1366-4. The foam includes a Duravalve, ensuring optimal yield throughout its shelf life, even when stored or transported horizontally.

Properties:

Fire resistant in a joint (EN 1366-4) for 240 minutes
High filling capacity
Good adhesion on all surfaces (except PE, PP and PTFE)
High insulation value, thermal and acoustic
Very good bonding properties
Not UV-resistant

Technical Data

Basis	Polyurethane
Consistency	Stable foam, thixotropic
Curing system	Moisture curing
Skin Formation (EN 17333-3)	6.5 min
Cutting Time (EN 17333-3)	20 min
Density	Ca. 19 kg/m³
Sound insulation (EN ISO 717-1)	60 dB
Thermal conductivity (λ) (EN 12667)	0.036 W/m·K
Box Yield (EN 17333-1)	750 ml yields ca. 44 l of foam
Joint Yield (EN 17333-1)	750 ml yields ca. 35 m of foam
Shrinkage after curing (EN 17333-2)	< 2 %
Expansion after curing (EN 17333-2)	< 2 %
Compressive strength (EN 17333-4)	Ca. 30 kPa
Shear strength (EN 17333-4)	Ca. 48 kPa
Tensile Strength (EN 17333-4)	Ca. 93 kPa
Elongation at Fmax (EN 17333-4)	Ca. 11.5 %
Temperature resistance**	-40 °C till +90 °C (cured)
