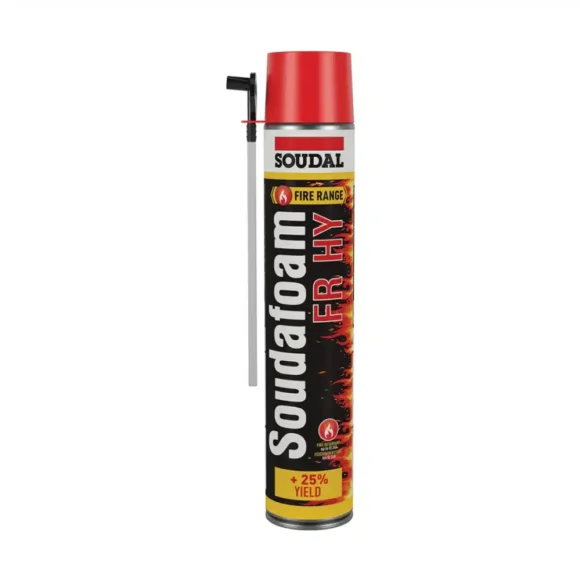

Soudafoam FR HY

APPLICATIONS

Installation of fireproof doors and windows
Sealing of fire-retardant joints in walls and ceiling
As part of the ‘Soudal Fire Range’ assortment for penetration seals and joints
Sealing of all openings in roof constructions
Apply of an acoustic baffle
All foam applications in static joints

Availability: In Stock

Category: Soudal

Description
Reviews (0)

Description:

GEN 750 is a one-component, self-expanding, ready to use PU-foam, which contains HCFC and CFC-free propellants who are not harmful for the Ozon layer.

Properties:

Excellent stability (no shrinkage or post expansion)
High filling capacity
Good adhesion on all surfaces (except PE, PP and PTFE)
High insulation value, thermal and acoustic
Very good bonding properties
Freon free (not harmless to ozone layer and greenhouse effect)
Not UV-resistant

Technical Data

Basis	Polyurethane
Consistency	Stable foam, thixotropic
Curing system	Moisture curing
Skin Formation (EN 17333-3)	9.5 min
Cutting Time (EN 17333-3)	50 min
Density	Ca. 40 kg/m³
Sound insulation (EN ISO 717-1)	60 dB
Thermal conductivity (λ) (EN 12667)	0.033 W/m·K
Box Yield (EN 17333-1)	750 ml yields ca. 34 l of foam
Joint Yield (EN 17333-1)	750 ml yields ca. 18 m of foam
Shrinkage after curing (EN 17333-2)	< 1 %
Expansion after curing (EN 17333-2)	< 1 %
Compressive strength (EN 17333-4)	Ca. 70 kPa
Shear strength (EN 17333-4)	Ca. 59 kPa
Tensile Strength (EN 17333-4)	Ca. 134 kPa
Elongation at Fmax (EN 17333-4)	Ca. 14.2 %
Temperature resistance**	-40 °C till +90 °C (cured)

Download Technical Data Sheet

PDF Icon
Download PDF
