APPLICATIONS:
Defective concrete, Concrete Joints, Brick Work, Wastewater Tanks, Tunnels, Dams, Pipe Intrusions
Description:

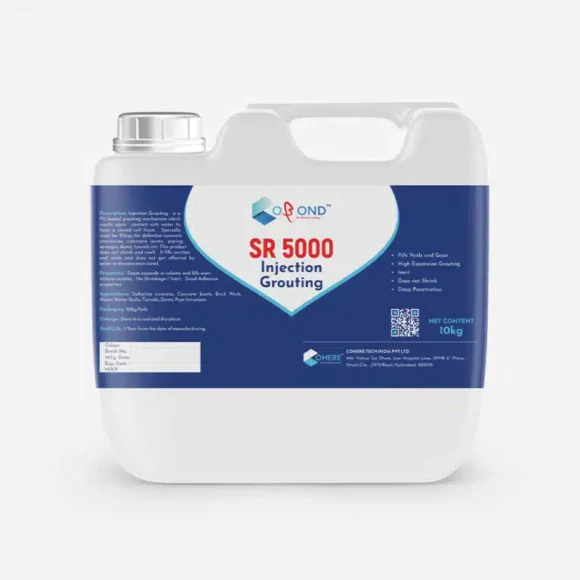

Injection Grouting is a PU based grouting mechanism which reacts upon contact with water to form a closed cell foam. specially used for filling the defective concrete structures, concrete joints, piping, sewages, dams, tunnels etc. This product does not shrink and swell. It fills cavities and voids and does not get affected by water or dryness once cured.
Availability: In Stock
Properties:
Foam expands in volume and fills even minute cavities, No Shrinkage / Inert, Good Adhesion properties.
| Parameter | Test Method | Values |
|---|---|---|
| Form | — | Liquid |
| Color | — | Dark Brown |
| Solubility | — | Hydrophobic |
| Density (g/ml) | — | 1.1 |
| Viscosity | KS F 4923 | 100–200 mPa·s |
| Max Expansion (25°C) | [Ratio 10:1 Resin : Water] | 2,700% |
| Induction Time (25°C) | [Ratio 2:1 Resin : Water] | 15 sec |
| Gel Time (25°C) | [Ratio 2:1 Resin : Water] | 110 sec |
| Tensile Shear Strength | (23°C), (KS M 3705) | 4 N/mm² |
| Appearance | — | Light Yellow Polyurethane Foam |
| Corrosiveness | — | Non-Corrosive |
| Chemical Resistance | — | Resistant to more organic Solvent, Mild Acids, Alkali |
| Shelf Life | — | 1 year when unopened and undamaged |
| Storage Condition | — | Store in a dry cool place |
| Packaging | — | 5 Kg / 10 Kg / 20 Kg / pail |
Color: Grey
Packing:2×5 Kg in a carton, and 25 Kg pail
