GEN 750

APPLICATIONS

Installing of window and door frames
Filling of cavities
Sealing of all openings in roof constructions
Apply of an acoustic baffle
Improving thermal isolation in cooling systems

Availability: In Stock

SKU:medical kit-1-1-1-1-1-3-2-2-3-3-2-2-2-1-2Categories: Polyurethanes, soudalTags: help Medical

Description
Reviews (0)

Description:

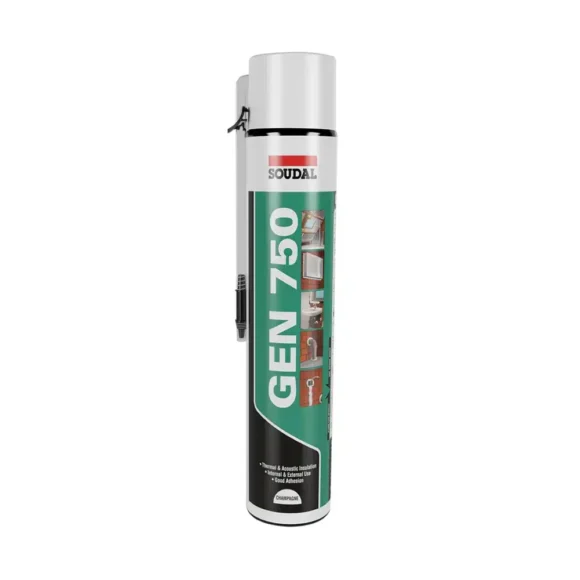

GEN 750 is a one-component, self-expanding, ready to use PU-foam, which contains HCFC and CFC-free propellants who are not harmful for the Ozon layer.

Properties:

Excellent stability (no shrinkage or post expansion)
High filling capacity
Good adhesion on all surfaces (except PE, PP and PTFE)
High insulation value, thermal and acoustic
Very good bonding properties
Freon free (not harmless to ozone layer and greenhouse effect)
Not UV-resistant

Technical Data

Basis	Polyurethane
Consistency	Stable foam, thixotropic
Curing system	Moisture curing
Skin Formation Time (23°C/50% RH) (min)*	18
Cutting Time (EN 17333-3)	55
Free foamed density (EN 17333-1)	Ca. 38
Box Yield (EN 17333-1)	300 ml yields ca. 9 l of foam 500 ml yields ca. 15 l of foam 750 ml yields ca. 23 l of foam
Joint Yield (EN 17333-1)	300 ml yields ca. 7 m of foam 500 ml yields ca. 12 m of foam 750 ml yields ca. 17 m of foam
Shrinkage after curing (EN 17333-2)	< 2 %
Expansion after curing (EN 17333-2)	< 1 %
Compressive strength (EN 17333-4)	Ca. 22 kPa
Shear strength (EN 17333-4)	Ca. 28 kPa
Tensile Strength (EN 17333-4)	Ca. 70 kPa
Temperature resistance**	-40 °C till +90 °C (cured)
